Hello Everyone, In this tutorial, I am going provide a working example of creating a zip file using visualforce and apex that helps you to create a zip file of attachment object. In this example, I am using some resource that I provided to download and upload in your salesforce org. to accomplish this tutorial.

After completing this tutorial, you’ll able to:
  • Create a zip file of attachment object.
So let's begin,

Resource: Download

To implement this example follow give steps,

Step 1: Download resource and upload as a Static Resource (Your Name>Setup>Static Resource> New) called ZipResource in your Salesforce Org.

Step 2: Open Developer Console, Go to File>New>Apex Class and create an Apex controller called ZipHandler. Replace the following code.
 public class ZipHandler {
    public Integer randomInt{get;set;}
    //Constructor
    public ZipHandler(){
        randomInt = getRandomNumber(10000);
    }

    @RemoteAction
    public static List<AttachmentWrapper> getAttachments(String sAttachmentIdCSV){
        List<String> attachmentIds = sAttachmentIdCSV.split(',');
        return wrapAttachments([SELECT Id,Name,Body FROM Attachment WHERE Id IN:attachmentIds]);
    }

    private static List<AttachmentWrapper> wrapAttachments(List<Attachment> attachments){
        List<AttachmentWrapper> wrappers = new List<AttachmentWrapper>();
        for(Attachment att : attachments){
            wrappers.add(new AttachmentWrapper(att));
        }
        return wrappers;
    }

    public class AttachmentWrapper{
        public Attachment AttachmentObj;
        public String base64Body;
        public AttachmentWrapper(Attachment AttachmentObj){
            this.AttachmentObj  = AttachmentObj;
            this.base64Body = EncodingUtil.base64Encode(AttachmentObj.Body);
            this.AttachmentObj.Body = NULL;
        }
    }

    /*
    *Random number generator to change the js function name if multiple components used
    */
    private Integer getRandomNumber(Integer size){
        Double d = Math.random() * size;
        return d.intValue();
    }
 }
Step 3: Open Developer Console, Go to File>New>Visualforce Component and create a new Visualforce Component called VFZipComponent and replace the following markup in the Visualforce Component.
 <apex:component controller="ZipHandler" selfClosing="true">
    <apex:attribute name="attachmentIds" type="String" required="true" description="Comma seperated ID of attachment to zip"/>
    <apex:attribute name="mode" type="String" default="auto" description="Set 'auto' for opening zip window as soon as component is visible,Set 'button' to render a button that will trigger the zip window"/>
    <apex:attribute name="generatedFileName" type="String" description="Generated zip file name" required="true"/>

    <apex:includeScript value="https://ajax.googleapis.com/ajax/libs/jquery/1.10.2/jquery.min.js"/>
    <apex:includeScript value="https://ajax.googleapis.com/ajax/libs/jqueryui/1.10.3/jquery-ui.min.js"/>
    <apex:includeScript value="{!URLFOR($Resource.ZipResource, '/jquery.reveal.js')}"/>
    <apex:includeScript value="{!URLFOR($Resource.ZipResource,'/jszip.js')}"/>
    <apex:stylesheet value="{!URLFOR($Resource.ZipResource, '/reveal.css')}"/>

    <style>
        .statusMessage{
            padding:4px;
            font-weight:bold;
            font-size:14px;
        }
    </style>

    <script>
    $(function () {
        if("{!LOWER(mode)}" != 'button'){
            initZip{!randomInt}();
        }
    });

    function initZip{!randomInt}(){
        $Status{!randomInt} = $("#Status{!randomInt}Message");
        $Status{!randomInt}.html('Preparing files for download');
        fetchAttachments{!randomInt}(zipAttachments{!randomInt});
        $('#myModal').reveal();
    }

    function zipAttachments{!randomInt}(attachments){
        $Status{!randomInt} = $("#Status{!randomInt}Message");
        $Status{!randomInt}.html('Creating Zip..');
        var zip = new JSZip();
        $.each(attachments,function(){
            zip.file(this.AttachmentObj.Name, this.base64Body, {base64: true});
        });
        var blobLink = document.getElementById('FileLink{!randomInt}');
        try {
            blobLink.download = "{!generatedFileName}.zip";
            blobLink.href = window.URL.createObjectURL(zip.generate({type:"blob"}));
        }
        catch(e) {
            blobLink.innerHTML += " (not supported on this browser)";
            console.log(e);
        }
        $("#FileLinkDiv{!randomInt}").show();
        $("#Status{!randomInt}").hide();
    }

    function fetchAttachments{!randomInt}(callback){
        Visualforce.remoting.Manager.invokeAction(
            '{!$RemoteAction.ZipHandler.getAttachments}','{!attachmentIds}',
            function(result, event){
                if (event.status) {
                    callback(result,event);
                }
            },
            { buffer: false, escape: true, timeout: 120000 }
        );
    }
    </script>

    <apex:outputPanel rendered="{!LOWER(mode) == 'button'}">
        <button onclick="initZip{!randomInt}();return false;">Download Files</button>
    </apex:outputPanel>

    <div id="myModal" class="reveal-modal">
        <center>
            <h1 style="font-size:18px">
                <img src="/img/icon/box32.png" style="vertical-align: bottom"/>
                Download Files
            </h1>
        </center>
        <br/>
        <p>
            <div>
                <div id="Status{!randomInt}">
                    <center><apex:image value="/img/loading32.gif"/></center>
                    <center><div id="Status{!randomInt}Message" class="statusMessage"/></center>
                </div>
                <div>
                    <br/>
                    <div id="FileLinkDiv{!randomInt}" style="display:none">
                        <center>
                            <a href="#" id="FileLink{!randomInt}">Click here to download your file</a>
                        </center>
                    </div>
                </div>
        </div>
    </p>
    <a class="close-reveal-modal">&#215;</a>
  </div>
 </apex:component>
Step 4: Open Developer Console, Go to File>New>Visualforce Page and create a new Visualforce Page called VFZipAttachment and replace the following markup.
 <apex:page showHeader="false" sidebar="false">
    <br/>
    <apex:pageBlock title="Create zip of Attachment files">
        <center>
            <c:VFZipComponent attachmentIds="00P2800000DXTifEAH,00P2800000EVZAgEAP" generatedFileName="MyZip" mode="button"/>
        </center>
    </apex:pageBlock>
 </apex:page>

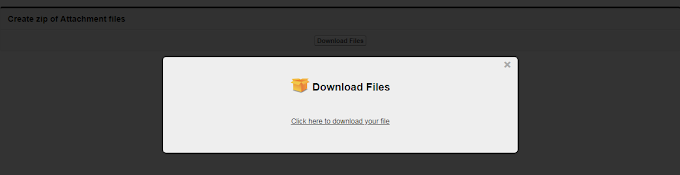

Output:

Parameters
  • attachmentIds : Required and accepted comma-separated IDs of attachment to zipping
  • generatedFileName : Required and accepted String value to set file name of generated zip.
  • mode : Defines the launch mode. If set to "button" the component will display a button to launch the zip window. If set to "auto" the component will launch the zip window as soon as a Visualforce page is opened.
Features
  • Can zip multiple files.
  • Can zip upto 5mb.
  • You can provide your own name for the generated zip files.
See also
Conclusion:
Hope you like this tutorial, for any query or suggestions please feel free to comment.
Thank you.
